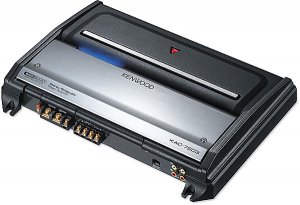

This illuminated, 1000W class AB 2ch power amplifier features an aluminum die-cast heat sink, cooling fan, and speaker level input.
*CEA Rated: 170W (1.0% THD+N) (4Ohm/2Ch)
*CEA Rated:250W (1.0% THD+N) (2Ohm/2Ch)
*1000 Watts Max Power
*Cast Aluminum Heat Sink
*Built-in Cooling Fan
*Built-in Variable Low-Pass Filter (40Hz-200Hz) -24dB/Oct
*Built-in Variable High-Pass Filter (40Hz-200Hz) -12dB/Oct
*Optional Remote Bass boost Control
*Power MOSFET Switching
*Dimensions in inches: W:14.9/D:11.2/H:2.5
RMS Power Output (Watts x Channels) 170 x 2
Peak Power Output (Watts x Channels) 500 x 2
Power at 2 Ohms (Watts x Channels) 250 x 2
Bridged Power (Watts x Channels) 500 x 1
Minimum Impedance Bridged 4
Minimum Impedance Unbridged 2
Frequency Response 20-20k Hz
THD at Rated RMS Power 1%
Signal to Noise Ratio 100 dB
Input Voltage 14.4v
Features
Amplifier Class AB
Low-Pass Crossover Frequency 50-200 Hz
Low-Pass Slope (dB/octave) -24 dB
High-Pass Crossover Frequency 50-200 Hz
High-Pass Slope (dB/octave) -12 dB
Bass Boost 0-18 dB
Bass Boost Frequency 40 Hz
Fan Cooled Yes
Fuse Rating 40 x 1
Speaker Level Inputs Yes
Preamp Outputs 1 pair
LED Power Indicator Yes
Width (inches) 11-9/16
Height (inches) 2-7/16
Depth (inches) 14-7/8
Parts Warranty 1 Year
Labor Warranty 1 year
